Serial Rope Hitch of elevator components EWD-H-P1

XI'AN EXCELLENT ELECTROMECHANICAL CO.,LTD
Contact Now

Serial Rope Hitch of elevator components EWD-H-P1

Brand Name : EWD

Model Number : EWD-H-P1

Certification : ISO9001

Place of Origin : China

MOQ : 10PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypel

Delivery Time : 7-10 working days by dhl or other ways

Packaging Details : 1 PCS/Small box,50 PCS/ Carton

Supply Ability : 10000 piece /Month

Type : Elevator parts

Place of origin : China

Brand name : EWD

Model No. : EWD-H-P1

Power supply : AC/DC 24V

Output method : Independent output

Analog : No

Key words : Elevator load sensor

System configuration : All- in- one

Suit : Serial car platform installing solution

business type : manufacturer

System output : overload 1 open and 1 close

Usage : For elevator overloading

Contact Now

EWD-H-P1 elavator parts overload weighting device/elevator load cell

Our products show:

Serial Rope Hitch of elevator components EWD-H-P1

  • This system is applicable to all elevators with movable car platform in need of overload signals. This device is of extremely high performance-price ratio. This appliance is to overcome the inherent disadvantage of the mechanical overload switch and to replace it.
  • Main Property:
  • Working in a contact less and inductive way. No mechanical movement itself. Being directly installed in the original place of overload switch. No necessity of changing the mechanism of elevator car.
  • Adopting strong inductive magnet, improving the anti-interference of the system to the utmost.
  • The electrical property is in compliance with the standard of the International Electromechanical Commission (IEC).
  • More accurately positioning, small overall size, easy installation and adjustment, simple structure and low price.

Serial Rope Hitch of elevator components EWD-H-P1

  • Working Principle:

This system weighs the elevator car load based on the principle of the elastic deformation of movable elevator car platform caused by loading with the HALL sensor measuring the change of displacement, fulfilling the aim of load weighing.

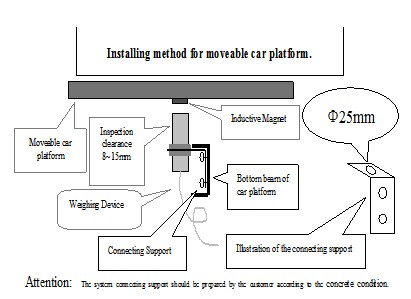

  • Installing Method:Serial Rope Hitch of elevator components EWD-H-P1Serial Rope Hitch of elevator components EWD-H-P1
  • Adjustment
  • 1.Please refer to the above figure to install this device with the connecting support (made by the customer himself) close to the middle part of the car platform as near as possible.
  • 2.Let the magnet adhesive on the car platform with the marking-face right facing the induction point of the device.
  • 3.Install and adjust this device so that the magnet on the car platform aims at the center point of its upper face. Meanwhile, assure the end face of this device in parallel with that of the magnet.
  • 4.When elevator is of rated loaded, adjust this device up and down to make the indicator just turn from dark to bright (or oscillating), at this time, fasten this device and the adjustment is finished.
  • The principle of system wiring:

Serial Rope Hitch of elevator components EWD-H-P1

Serial Rope Hitch of elevator components EWD-H-P1

Certificate:

Serial Rope Hitch of elevator components EWD-H-P1

Our factory:

Serial Rope Hitch of elevator components EWD-H-P1

Packing:

Serial Rope Hitch of elevator components EWD-H-P1

Thanks for visit our product here,any interested,plz contact with Yolly!
